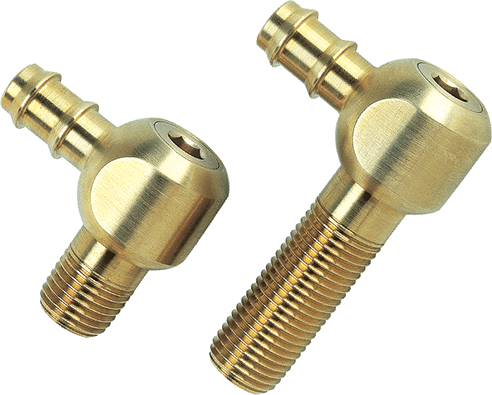

Heavy duty hex socket allows maximum torque and positive removal
Adjustable thread for perfect positioning
- Can be fully recessed to prevent accidental disconnect or damage
- Swivel body allows for installation in tight spaces
- Eliminate crimped hoses and setup errors
- Viton O-ring seals
- All brass construction
- Easy hex key installation
- Custom length water jumpers available
Catalog Number |
Hose I.D. |
Pipe Size (NPT) |
Hex Key Size |
Min Slot Width |
Min Slot Depth |
Stock |
|||||
| H | L | A | O | C | B | ||||||
| WJ18-S | 5/16 | 1/8 | 1 3/16 | 3/16 | 11/16 | 1 | 5/8 | .660 | 11/16 | 1 | ● |
| WJ18-M | 2 | ● | |||||||||
| WJ18-L | 3 1/2 | ● | |||||||||
| WJ14-S | 3/8 | 1/4 | 1 7/16 | 1/4 | 13/16 | 1 3/16 | 25/32 | .840 | 7/8 | 1 3/16 | ● |
| WJ14-M | 2 3/8 | ● | |||||||||
| WJ14-L | 3 7/8 | ● | |||||||||
| WJ38-S | 1/2 | 3/8 | 1 5/8 | 5/16 | 1 | 1 3/8 | 15/16 | .980 | 1 | 1 3/8 | ● |
| WJ38-M | 2 5/8 | ● | |||||||||
| WJ38-L | 4 1/8 | ● | |||||||||
| WJ50-S50 | 1/2 | 1/2 | 2 | 3/8 | 1 1/8 | 1 1/2 | 1 1/8 | 1.235 | 1 1/4 | 1 9/16 | ● |
| WJ50-M50 | 3 | ● | |||||||||
| WJ50-L50 | 4 1/2 | ● | |||||||||
| WJ50-S | 3/4 | 1/2 | 2 | ● | |||||||
| WJ50-M | 3 | ● | |||||||||
| WJ50-L | 4 1/2 | ● |
