- Available in brass or zinc plated steel
- Easy socket wrench installation and removal requires minimal clearance
- Full flow path allows connecting fittings to be torqued tight without choking off flow
- BSPT Threads are available
| Steel Catalog Number |
Brass Catalog Number |
Pipe Size |
Pipe Size |
L | E | Wrench Clearance Dia. "D" |
Hex Size |
Steel | Brass |
| A | B | ||||||||
| M16S | M16SB | 1/16 | 1/16 | 15/16 | 7/32 | 1 | 9/16 | ● | ● |
| M18S | M18SB | 1/8 | 1/8 | 1 1/16 | 9/32 | 1 1/4 | 3/4 | ● | ● |
| M1814S | M1814SB | 1/4 | 1 3/16 | 9/32 | 1 1/4 | 3/4 | ● | ● | |
| M14S | M14SB | 1/4 | 1/4 | 1 5/16 | 11/32 | 1 3/8 | 7/8 | ● | ● |
| M1438S | M1438SB | 3/8 | 1 7/16 | 11/32 | 1 3/8 | 7/8 | ● | ● | |
| M38S | M38SB | 3/8 | 3/8 | 1 5/8 | 7/16 | 1 1/2 | 1 | ● | ● |
| M50S | M50SB | 1/2 | 1/2 | 2 | 9/16 | 1 7/8 | 1 1/4 | ● | ● |
| M75S | M75SB | 3/4 | 3/4 | 2 1/8 | 5/8 | 2 1/4 | 1 1/2 | ● | ● |

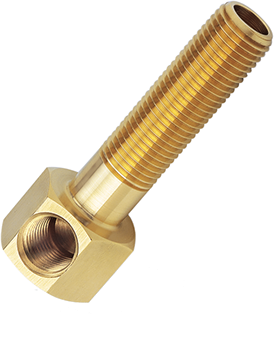

- Positive socket wrench installation
- One piece construction ensures positive alignment and positive removal
- Easy length adjustment with the pre-cut thread system
- Custom elbows are available in a wide variety of thread combinations (including BSPT)
Pipe A
Adjustable threads for use when exact length adjustment is required
Pipe B
Catalog Number |
Pipe Size |
Pipe Size |
Hex Size |
Wrench Clearance Dia. "D" |
|||||||||
| A | B | E | 2 1/2 | 4 | 5 1/2 | 7 | 8 1/2 | 10 | 11 1/2 | 13 | |||
| 18B- | 1/8 | 1/8 | 3/4 | 1 1/4 | 9/32 | • | • | • | • | • | • | • | • |
| 1814B- | 1/4 | 3/4 | 1 1/4 | 9/32 | • | • | • | • | • | • | • | • | |
| 14B- | 1/4 | 1/4 | 7/8 | 1 3/8 | 11/32 | • | • | • | • | • | • | • | • |
| 1438B- | 3/8 | 7/8 | 1 3/8 | 11/32 | • | • | • | • | • | • | • | • | |
| 38B- | 3/8 | 3/8 | 1 | 1 1/2 | 1/2 | • | • | • | • | • | • | • | • |
| 50B- | 1/2 | 1/2 | 1 1/4 | 1 3/4 | 5/8 | • | • | • | • | • | • | • | • |
OVERALL LENGTH 'L'
* To order, specify Catalog Number and Overall Length. Example: 14B-4
* For a custom length, specify Catalog Number and Overall Length. Example: 14B-7.875

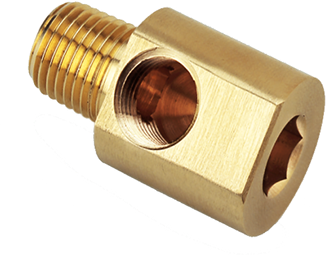

Hex Key Street EL's
Easy hex wrench installation
Hex Key Elbows install with an Allen wrench for easy assembly in tight spaces
- Angular coolant path prevents fitting interference at assembly and guarantees full flow
- Requires smaller swing clearance than standard elbows
- BSPT and other thread options are available
- Order Pipe Nipples here
Catalog Number |
Pipe Size |
Pipe Size |
L | E | O.D. | Min Clearance Diameter |
Hex Key Size |
Stock |
| A | B | |||||||
| KL16 | 1/16 | 1/16 | 1.156 | .531 | .552 | 9/16 | 1/4 | • |
| KL1618 | 1/8 | 1.218 | .531 | .615 | 5/8 | 5/16 | • | |
| KL18 | 1/8 | 1/8 | 1.312 | .580 | .615 | 5/8 | 5/16 | • |
| KL1814 | 1/4 | 1.500 | .593 | .860 | 7/8 | 3/8 | • | |
| KL14 | 1/4 | 1/4 | 1.625 | .660 | .860 | 7/8 | 3/8 | • |
| KL1438 | 3/8 | 1.625 | .712 | .985 | 1 | 1/2 | • | |
| KL38 | 3/8 | 3/8 | 1.750 | .780 | .985 | 1 | 1/2 | • |
| KL50 | 1/2 | 1/2 | 2.250 | .940 | 1.235 | 1 1/4 | 1/2 | • |

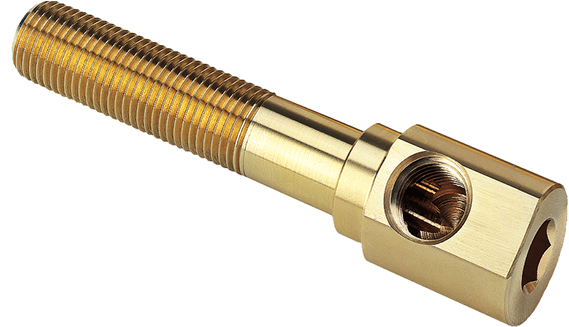

Hex Key Extension Elbows are round and install with an Allen wrench.
Wrench clearance is not required, making these elbows ideal for use inside the mold or anywhere space is limited
Solid one-piece construction
Round design allows close connections
Heavy duty hex socket for positive assembly and removal
- Angular coolant path prevents fitting interference at assembly and guarantees full flow
- Accurate length adjustments are easy with the patented Custom Mold thread system
- BSPT and other thread options are available
- Order Pipe Nipples here
Catalog Number |
Pipe Size |
Pipe Size |
Minimum Clearance Diameter |
Hex Key Size |
||||||||||
| A | B | E | O.D. | 2 1/2 | 4 | 5 1/2 | 7 | 8 1/2 | 10 | 11 1/2 | 13 | |||
| EKL16- | 1/16 | 1/16 | .531 | .552 | 9/16 | 1/4 | • | • | • | • | • | • | • | • |
| EKL18- | 1/8 | 1/8 | .580 | .615 | 5/8 | 5/16 | • | • | • | • | • | • | • | • |
| EKL14- | 1/4 | 1/4 | .660 | .860 | 7/8 | 3/8 | • | • | • | • | • | • | • | • |
| EKL38- | 3/8 | 3/8 | .780 | .895 | 1 | 1/2 | • | • | • | • | • | • | • | • |
| EKL50- | 1/2 | 1/2 | .940 | 1.235 | 1 1/4 | 1/2 | • | • | • | • | • | • | • | • |
OVERALL LENGTH 'L'
* To order, specify Catalog Number and Overall Length. Example: EKL14-4
* For a custom length, specify Catalog Number and Overall Length. Example: EKL14-7.875
90 Deg. Street Elbows
- Finest quality - MADE IN USA
- Solid brass construction
- See other elbow styles here
| Catalog Number |
Pipe Size |
W |
H |
Stock Item |
| SL-18 | 1/8 | 11/16 | 15/16 | • |
| SL-14 | 1/4 | 1 | 1 1/4 | • |
| SL-38 | 3/8 | 1 1/8 | 1 3/8 | • |
| SL-50 | 1/2 | 1 1/2 | 1 3/4 | • |
