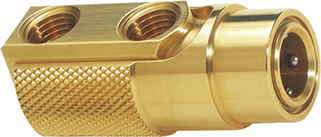

Heavy duty quick coupling fits standard mold connections
Can be installed and removed with a simple 'Click'
*
| Catalog Number |
Conn. Part Num. |
K Min. |
| SC186N SC181N |
251 | .32 |
| 252 | .43 | |
| 253 | .49 | |
| SC146N-4 SC141N-4 |
351 | .34 |
| 352 | .42 | |
| 353 | .45 | |
| 354 | .57 | |
| SC121N-4 SC121N-6 |
553 | .55 |
| 554 | .54 | |
| 556 | .57 |
*
*
- Can be installed and removed without disconnecting coolant lines.
- Viton seals standard.
- High flow design
provides maximum

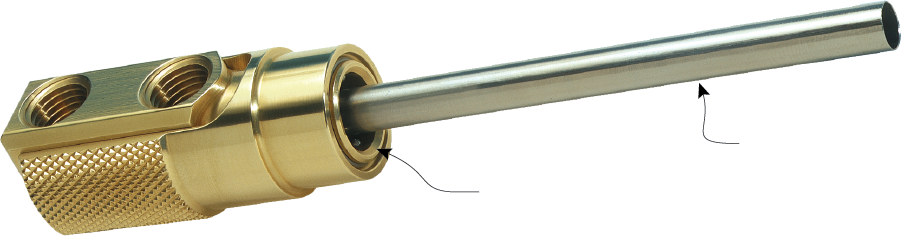

cooling rates. - 12" High Flow
Stainless Tube and
alternate inlet
Brass Pipe Plug included.
Catalog Number |
Pipe Tap (NPT) |
Connector Series |
Tube Thread |
High Flow Tube Included |
L |
C |
A |
H |
End of Tube Ref. |
O.D. |
Stock Item |
| X | |||||||||||
| SC186N | 1/8 | 200 | 1/4-28 | HF187T-12 | 1.937 | 11/16 | 31/32 | 13/16 | 1.45 | 7/8 | · |
| SC181N | 2.250 | 1 | 31/32 | 13/16 | 1.54 | 7/8 | · | ||||
| SC146N-4 | 1/4 | 300 | 5/16-24 | HF250T-12 | 2.187 | 11/16 | 1 5/32 | 1 | 1.63 | 1 1/8 | · |
| SC141N-4 | 2.500 | 1 | 1 5/32 | 1 | 1.70 | 1 1/8 | · | ||||
| SC121N-4 | 1/4 | 500 | 1/2-20 | HF437T-12 | 3.125 | 1 1/4 | 1 3/8 | 1 1/4 | 2.20 | 1 3/8 | · |
| SC121N-6 | 3/8 | 3.125 | 1 1/4 | 1 3/8 | 1 1/4 | 2.20 | 1 3/8 | · |
*Uses High Flow Tube JHF187T-
**Uses High Flow Tube JHF375T-
Catalog Number |
Tube Thread |
Standard High Flow Tube |
Alternate High Flow Tube |
Stock Item |
| SC186H | 1/4-28 | HF187T- | JHF125T- | ● |
| SC181H | ● | |||
| SC146H-4 | 5/16-24 | HF250T- | JHF187T- | ● |
| SC141H-4 | ● | |||
| SC121H-4 | 1/2-20 | HF437T- | JHF375T- | ● |
| SC121H-6 | ● |
- Aids in quick and efficient
assembly and disassembly
of cooling circuit. - Heavy duty all brass and
stainless steel construction. - Viton seals standard.
- Dimensions are same as above
for corresponding catalog number. - Brass Pipe Plug for alternate inlet included.
