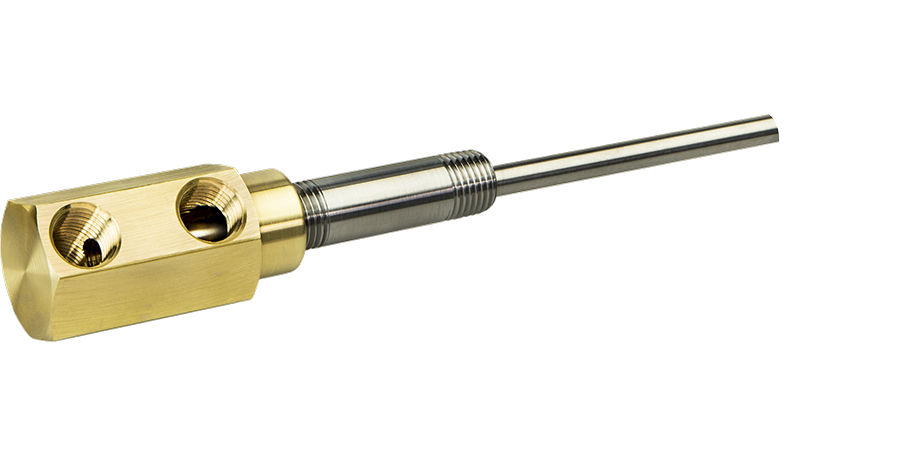

Nipple Type Assemblies (with High Flow Tubes)
- Assemblies include Brass Head, 12" High Flow Tube,
2" long Stainless Pipe Nipple,
and Brass Pipe Plug. - Solid Brass Heads are precision machined for accurate assembly.
- Cascade Assemblies are available with custom pipe tap and tube combinations.
Stainless High Flow Tube for maximum performance
Catalog Number |
IN/OUT Pipe Size (NPT) |
Mold Nipple Size (NPT) |
Tube Thread Size |
Tube O.D. |
High Flow Tube Included |
Hex Size |
Tube End Ref. |
Stock Item |
||||
| E | C | A | L | X | ||||||||
| 16N-HFT | 1/16 | 1/8 | 1/4-28 | 3/16 | HF187T-12 | 3/4 | 7/32 | 1/2 | 9/32 | 15/16 | .90 | ● |
| 186N-HFT | 1/8 | 7/8 | 21/64 | 11/16 | 9/32 | 1 11/32 | 1.06 | ● | ||||
| 181N-HFT | 1/8 | 7/8 | 21/64 | 1 | 9/32 | 1 21/32 | 1.18 | ● | ||||
| 146N-HFT | 1/8 | 1/4 | 5/16-24 | 1/4 | HF250T-12 | 1 | 21/64 | 11/16 | 7/32 | 1 11/32 | 1.05 | ● |
| 146N-4-HFT | 1/4 | 1 | 21/64 | 11/16 | 7/32 | 1 11/32 | 1.08 | ● | ||||
| 141N-HFT | 1/8 | 1 | 21/64 | 1 | 7/16 | 1 21/32 | 1.44 | ● | ||||
| 141N-4-HFT | 1/4 | 1 | 21/64 | 1 | 7/16 | 1 21/32 | 1.44 | ● | ||||
| 381N-HFT | 1/8 | 3/8 | 3/8-24 | 5/16 | HF312T-12 | 1 | 11/32 | 1 | 13/32 | 1 11/16 | 1.44 | ● |
| 381N-4-HFT | 1/4 | 1 | 11/32 | 1 | 13/32 | 1 11/16 | 1.44 | ● | ||||
| 121N-4-HFT | 1/4 | 1/2 | 1/2-20 | 7/16 | HF437T-12 | 1 1/4 | 13/32 | 1 | 9/16 | 1 13/16 | 1.80 | ● |
* See tube specifications here.
- For use with standard High Flow Stainless Tubes.
- All dimensions same as above for corresponding catalog number.
- Order Adjustable Brass Nipples, or other pipe nipples here.
Catalog Number |
Tube Thread Size |
Standard Tube |
Alternate Tube |
Stock Item |
| 16H-HFT | 1/4-28 | HF187T- | JHF125T- | ● |
| 186H-HFT | ● | |||
| 181H-HFT | ● | |||
| 146H-HFT | 5/16-24 | HF250T- | JHF187T- | ● |
| 146H-4-HFT | ● | |||
| 141H-HFT | ● | |||
| 141H-4-HFT | ● | |||
| 381H-HFT | 3/8-24 | HF312T- | JHF250T- | ● |
| 381H-4-HFT | ● | |||
| 121H-4-HFT | 1/2-20 | HF437T- | JHF375T- | ● |
* See tube specifications here.
