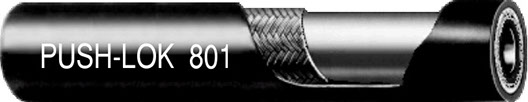

Hose - Push-Lok 801 Series

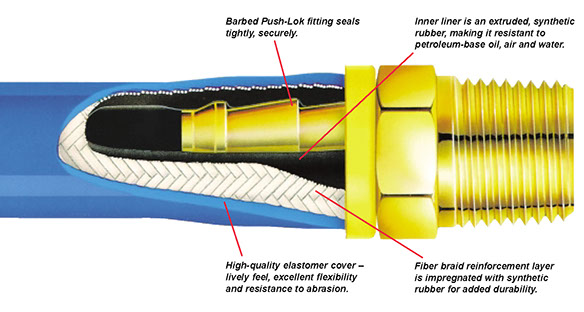

  • NO hose clamps required when used with Push-Lok hose barbs
  • Constructed of synthetic rubber tube, one textile braid reinforcement, and synthetic rubber cover
  • Temperature range with water to 185F
  • Can also be used with standard hose barbs and Hose Clamps

 R

BL

GR

Colors in Stock

 B

 Y

 G

Also Available

Catalog
Number		 Hose
I.D.		 Hose
O.D.		 Minimum
Bend
Radius (in.)		 Inches
of
Mercury		 Working
Pressure
(PSI)		 Burst
Pressure
(PSI)		 Reel
Length
(ft.)		 Box
(50 ft.)		 Reel
801-4 1/4 .500 2 1/2 28 250 1000 600' • •
801-5 5/16 .580 3 28 250' • •
801-6 3/8 .630 3 28 450' • •
801-8 1/2 .780 5 28 300' • •
801-10 5/8 .910 6 15 250' • •
801-12 3/4 1.030 7 15 200' • •

* To Order, specify Catalog Number, Color, Box (-BX) or Reel(-RL)

* Example: 801-6-GR-RL

Push-Lok Hose Application

Download Catalog
