High-Flow Stainless Tubes

PDF

CAD

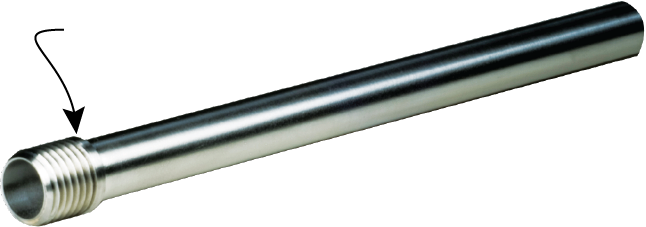

Stop collar for positive positioning

  • All stainless construction for high strength and durability
  • Cut to exact length tubes ship
    same day
  • To order, specify Catalog Number
    and Overall Length.
    Example: HF250T-18
  • For a custom length, specify Catalog Number and Overall Length.
    Example: HF250T-23.24
  • We stock over 150 sizes of thin wall stainless tubing. See them here.
  • We build stepped and custom tubes
    to your print. More information here.

Catalog
Number
Thread
Size
Tube
O.D.
Tube
I.D.		 Thread
Length		   Overall Length "L"
H A 12" 18" 24" 36" Lengths
to 5 ft.
HF072T- 5-44 .072 .060 .125 .140 ● ● ● ● ●
JHF072T- 10-32 .156 .203 ● ● ● ● ●
HF093T- 5-44 .090 .076 .125 .140 ● ● ● ● ●
JHF093T- 10-32 .156 .203 ● ● ● ● ●
HF125T- 10-32 .125 .109 .156 .203 ● ● ● ● ●
JHF125T- 1/4-28 .203 .255 ● ● ● ● ●
HF187T- 1/4-28 .187 .167 .203 .255 ● ● ● ● ●
JHF187T- 5/16-24 .235 .290 ● ● ● ● ●
HF250T- 5/16-24 .250 .230 .235 .290 ● ● ● ● ●
JHF250T- 3/8-24 .296 .359 ● ● ● ● ●
HF312T- 3/8-24 .312 .288 .296 .359 ● ● ● ● ●
JHF312T- 7/16-20 .359 .437 ● ● ● ● ●
HF375T- 7/16-20 .365 .340 .359 .437 ● ● ● ● ●
JHF375T- 1/2-20 .421 .500 ● ● ● ● ●
HF437T- 1/2-20 .427 .397 .421 .500 ● ● ● ● ●
JHF437T- 9/16-18 .421 .531 ● ● ● ● ●
HF500T- 9/16-18 .500 .444 .421 .531 ● ● ● ● ●
JHF500T- 5/8-18 .421 .531 ● ● ● ● ●

* To order, specify Catalog Number and Overall Length. Example: HF250T-18

* For a custom length, specify Catalog Number and Overall Length. Example: HF250T-23.24

Download Catalog
