Flow-Thru Couplers (With Push-Lok Barbs)

PDF

CAD
  • Straight through design provides maximum flow rates
  • All brass and stainless steel construction
  • Pressures to 200 psi, temps to 400F
  • Uses Push-Lok Hose available here.
  • Replacement Seals available here.
  • Made in USA

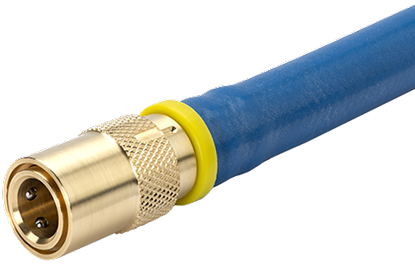

Lock in place with a twist

(Patent Pending)

Straight

Catalog
Number		 Hose
I.D.		 Stock
Item
CM-204-PL 1/4 ·
CM-205-PL 5/16 ·
CM-206-PL 3/8 ·
Catalog
Number		 Hose
I.D.		 Stock
Item
CM-306-PL 3/8 ·
CM-308-PL 1/2 ·
Catalog
Number		 Hose
I.D.		 Stock
Item
CM-504-PL 1/2 ·
CM-506-PL 3/4 ·

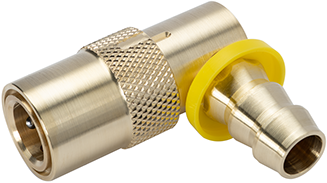

90 Deg.

Catalog
Number		 Hose
I.D.		 Stock
Item
CM-214-PL 1/4 ·
CM-215-PL 5/16 ·
CM-216-PL 3/8 ·
Catalog
Number		 Hose
I.D.		 Stock
Item
CM-316-PL 3/8 ·
CM-318-PL 1/2 ·
Catalog
Number		 Hose
I.D.		 Stock
Item
CM-514-PL 1/2 ·
CM-516-PL 3/4 ·

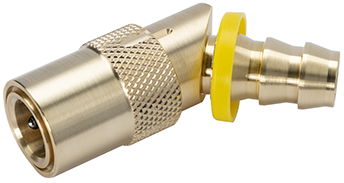

45 Deg.

Catalog
Number		 Hose
I.D.		 Stock
Item
CM-224-PL 1/4 ·
CM-225-PL 5/16 ·
CM-226-PL 3/8 ·
Catalog
Number		 Hose
I.D.		 Stock
Item
CM-326-PL 3/8 ·
CM-328-PL 1/2 ·
Catalog
Number		 Hose
I.D.		 Stock
Item
CM-524-PL 1/2 ·
CM-526-PL 3/4 ·

Coupler Body Only - Flow Thru

PDF

CAD
  • Flow-thru type
  • Locks for safety
  • All brass and stainless steel construction
  • Pressures to 200 psi, temps to 400F
  • Use with standard barbs or Push-Lok Barbs
  • Made in USA

Thread Size (NPT)

Catalog
Number		 Thread
Size		 Stock
Item
CMB-200 1/8 ·
CMB-200-1/4 1/4 ·
Catalog
Number		 Thread
Size		 Stock
Item
CMB-300 1/4 ·
CMB-300-3/8 3/8 ·
Catalog
Number		 Thread
Size		 Stock
Item
CMB-500 1/2 ·

Download Catalog
