Thread Size (NPT)
| Catalog Number |
Thread Size |
Stock Item |
| CMB-200 | 1/8 | · |
| CMB-200-1/4 | 1/4 | · |
| Catalog Number |
Thread Size |
Stock Item |
| CMB-300 | 1/4 | · |
| CMB-300-3/8 | 3/8 | · |
| Catalog Number |
Thread Size |
Stock Item |
| CMB-500 | 1/2 | · |
- Flow-thru type
- Locks for safety
- All brass and stainless steel construction
- Pressures to 200 psi, temps to 400F
- Use with standard barbs or Push-Lok Barbs
- Made in USA
These couplers have the highest flow possible

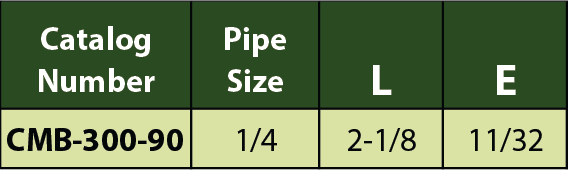

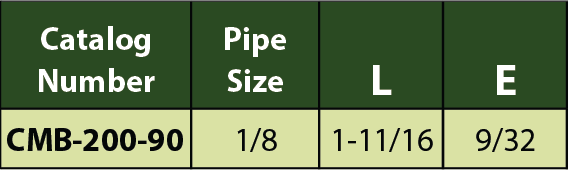

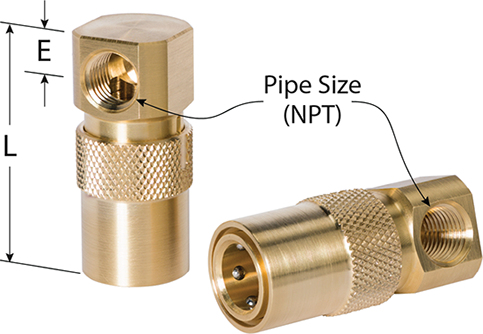

Coupler Body Only - 90 Degree
- Fully compatible with current couplers
- Use with any connecting fitting
- Locks for safety
Make a 90 deg using a straight hose
Use a pipe nipple for rigid connections
Change coupler series

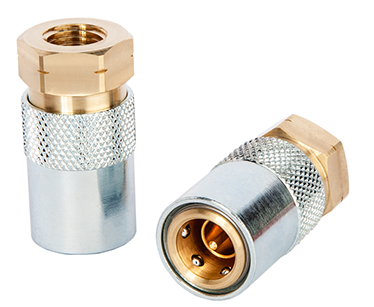

- Valved type
- All brass and stainless steel construction, sleeve is plated for identification
- These couplers will open all valved connector plugs
- Includes valve and valve spring
- Pressures to 200 psi, temps to 400F
- Use with standard barbs or Push-Lok Barbs
- Find replacement seals here
- Made in USA
| Catalog Number |
Thread Size |
Stock Item |
| CMB-200-V | 1/8 | ● |
| Catalog Number |
Thread Size |
Stock Item |
| CMB-300-V | 1/4 | ● |
| Catalog Number |
Thread Size |
Stock Item |
| CMB-500-V | 1/2 | ● |
These couplers include a shut off valve option
Thread Size (NPT)
