| Catalog Number |
Overall Length (in) |
Plug Size (NPT) |
Blade Width (-.005) |
Drill Dia. |
Blade Thickness |
Stock Item |
| SB16 X 4-SS | 4 | 1/16-27 | 1/4 | 1/4 | 1/16 | • |
| SB16 X 8-SS | 8 | • | ||||
| SB16 X 12-SS | 12 | • | ||||
| SB18 X 4-SS | 4 | 1/8-27 | 5/16 | 5/16 | 1/16 | • |
| SB18 X 8-SS | 8 | • | ||||
| SB18 X 12-SS | 12 | • | ||||
| SB14 X 5-SS | 5 | 1/4-18 | 7/16 | 7/16 | 1/16 | • |
| SB14 X 10-SS | 10 | • | ||||
| SB14 X 15-SS | 15 | • | ||||
| SB38 X 6-SS | 6 | 3/8-18 | 9/16 | 9/16 | 1/16 | • |
| SB38 X 12-SS | 12 | • | ||||
| SB38 X 18-SS | 18 | • | ||||
| SB12 X 8-SS | 8 | 1/2-14 | 11/16 | 11/16 | 1/16 | • |
| SB12 X 16-SS | 16 | • | ||||
| SB34 X 12-SS | 12 | 3/4-14 | 15/16 | 15/16 | 1/16 | • |
| SB34 X 20-SS | 20 | • |
- Flush-seal type ( 7/8 taper) stainless steel pipe plugs standard. Oversize ( 3/4 taper) plugs available.
- Longer length baffles available from stock
- Custom length baffles ship same day
Extra deep socket
is stronger, and
will not strip out
solid Stainless steel solderless joint for 300% more wrenching power
NPT Stainless Straight Plug Baffles

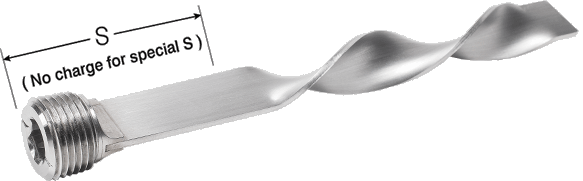

Spiral lengthens the
cooling path and
keeps the baffle centered,
providing up to
11% greater flow rate
| Catalog Number |
Overall Length (in) |
Straight Length |
Plug Size (NPT) |
Blade Width (-.005) |
Drill Dia. |
Blade Thickness |
Stock Item |
| S | |||||||
| TB16 X 4-SS | 4 | 2 | 1/16-27 | 1/4 | 1/4 | 1/16 | • |
| TB16 X 8-SS | 8 | 4 | • | ||||
| TB16 X 12-SS | 12 | 6 | • | ||||
| TB18 X 4-SS | 4 | 2 | 1/8-27 | 5/16 | 5/16 | 1/16 | • |
| TB18 X 8-SS | 8 | 4 | • | ||||
| TB18 X 12-SS | 12 | 6 | • | ||||
| TB14 X 5-SS | 5 | 2 | 1/4-18 | 7/16 | 7/16 | 1/16 | • |
| TB14 X 10-SS | 10 | 4 | • | ||||
| TB14 X 15-SS | 15 | 6 | • | ||||
| TB38 X 6-SS | 6 | 2 | 3/8-18 | 9/16 | 9/16 | 1/16 | • |
| TB38 X 12-SS | 12 | 4 | • | ||||
| TB38 X 18-SS | 18 | 6 | • | ||||
| TB12 X 8-SS | 8 | 3 | 1/2-14 | 11/16 | 11/16 | 1/16 | • |
| TB12 X 16-SS | 16 | 5 | • | ||||
| TB34 X 12-SS | 12 | 4 | 3/4-14 | 15/16 | 15/16 | 1/16 | • |
| TB34 X 20-SS | 20 | 6 | • |
- Same heavy duty construction as
the straight
baffles above - Same day shipment on custom length baffles
