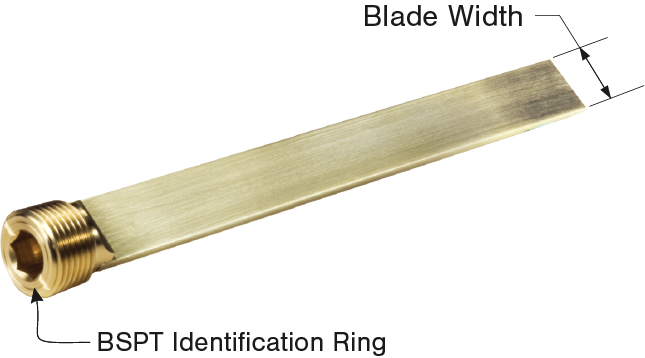

- Threads are tapered,and will seal in straight or tapered holes
- Same day shipment on custom length baffles
- BSPT Brass Plug Baffles for use with other tap drill sizes. Please call for details
Extra deep socket
is stronger, and
will not strip out
Solid brass solderless
joint for 300% more
wrenching power
Catalog Number |
Overall Length (in) |
Plug Size (BSPT) |
Blade Width (-.005) |
Drill Dia. (mm) |
Blade Thickness |
Stock Item |
| SB18 X 4 BSP | 4 | 1/8-28 | 7.92 | 8.5 | 0.057 | · |
| SB18 X 8 BSP | 8 | · | ||||
| SB18 X 12 BSP | 12 | · | ||||
| SB14 X 5 BSP | 5 | 1/4-19 | 10.71 | 11 | 0.085 | · |
| SB14 X 10 BSP | 10 | · | ||||
| SB14 X 15 BSP | 15 | · | ||||
| SB38 X 6 BSP | 6 | 3/8-19 | 14.29 | 14.5 | 0.093 | · |
| SB38 X 12 BSP | 12 | · | ||||
| SB38 X 18 BSP | 18 | · | ||||
| SB12 X 8 BSP | 8 | 1/2-14 | 17.46 | 18 | 0.093 | · |
| SB12 X 16 BSP | 16 | · | ||||
| SB34 X 12 BSP | 12 | 3/4-14 | 23 | 23.5 | 0.093 | · |
| SB34 X 20 BSP | 20 | · | ||||
| SB1 X 16 BSP | 16 | 1-11 | 28.58 | 29 | 0.093 | · |
| SB1 X 24 BSP | 24 | · |
* Longer length baffles are available from stock
* Custom length baffles ship same day
- Threads are tapered,and will seal in straight or tapered holes
- Same heavy duty construction as the straight baffles above
- Same day shipment on custom length baffles
- BSPT Brass Plug Baffles for use with other tap drill sizes are available. Please call for details
* Longer length baffles are available from stock
* Custom length baffles and baffles with custom "S" length ship same day
Catalog Number |
Overall Length (in) |
Straight Length |
Plug Size (BSPT) |
Blade Width (-.005) |
Drill Dia. (mm) |
Blade Thickness |
Stock Item |
| S | |||||||
| TB18 X 4 BSP | 4 | 2 | 1/8-28 | 7.92 | 8.5 | 0.057 | · |
| TB18 X 8 BSP | 8 | 4 | · | ||||
| TB18 X 12 BSP | 12 | 6 | · | ||||
| TB14 X 5 BSP | 5 | 2 | 1/4-19 | 10.71 | 11 | 0.085 | · |
| TB14 X 10 BSP | 10 | 4 | · | ||||
| TB14 X 15 BSP | 15 | 6 | · | ||||
| TB38 X 6 BSP | 6 | 2 | 3/8-19 | 14.29 | 14.5 | 0.093 | · |
| TB38 X 12 BSP | 12 | 4 | · | ||||
| TB38 X 18 BSP | 18 | 6 | · | ||||
| TB12 X 8 BSP | 8 | 3 | 1/2-14 | 17.46 | 18 | 0.093 | · |
| TB12 X 16 BSP | 16 | 5 | · | ||||
| TB34 X 12 BSP | 12 | 4 | 3/4-14 | 23 | 23.5 | 0.093 | · |
| TB34 X 20 BSP | 20 | 6 | · | ||||
| TB1 X 16 BSP | 16 | 5 | 1-11 | 28.58 | 29 | 0.093 | · |
| TB1 X 24 BSP | 24 | 8 | · |

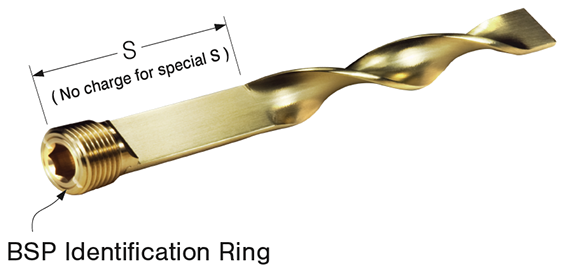

Spiral lengthens the
cooling path and
keeps the baffle centered,
providing up to
11% greater flow rate
