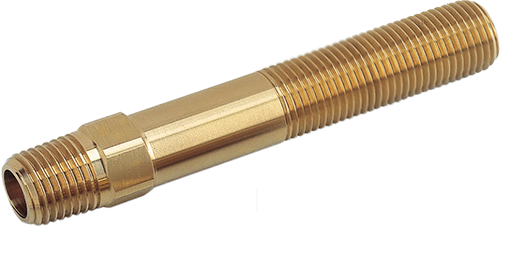

- Especially helpful when installing Cascade Heads, Hex Elbows, etc. inside molds and slides
- Longer and exact lengths available
- Also available in other thread combinations. (Including BSP)
| Catalog Number |
Pipe Thread (NPT) |
Hex Size |
A | 2 1/2 | 4 | 5 1/2 | 7 | 8 1/2 | 10 | 11 1/2 | 13 |
| APN16- | 1/16 | 3/8 | 11/16 | ● | ● | ● | ● | ● | ● | ● | ● |
| APN18- | 1/8 | 7/16 | 3/4 | ● | ● | ● | ● | ● | ● | ● | ● |
| APN14- | 1/4 | 9/16 | 7/8 | ● | ● | ● | ● | ● | ● | ● | ● |
| APN38- | 3/8 | 11/16 | 1 | ● | ● | ● | ● | ● | ● | ● | ● |
| APN12- | 1/2 | 7/8 | 1 3/8 | ● | ● | ● | ● | ● | ● | ● | ● |
OVERALL LENGTH
* To order, specify Catalog Number and Overall Length. Example: APN14-4
* For a custom length, specify Catalog Number and Overall Length. Example: APN14-7.875
- Finest quality - MADE IN USA
- Solid brass construction
- BSPT versions available
| Catalog Number |
Pipe Size |
Hex Size |
L |
Stock Item |
| HN-16 | 1/16 | 3/8 | 31/32 | ● |
| HN-18 | 1/8 | 7/16 | 31/32 | ● |
| HN-14 | 1/4 | 9/16 | 1 3/8 | ● |
| HN-38 | 3/8 | 11/16 | 1 7/16 | ● |
| HN-50 | 1/2 | 7/8 | 1 13/16 | ● |
