Piston Tubes

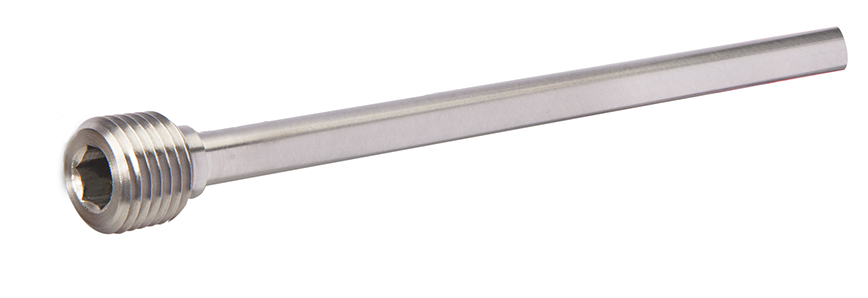

Coolant flows through flush seal pipe plug and Stainless High Flow tube

High Flow Stainless tube

provides maximum cooling rates

PDF

CAD
  • All stainless construction for high strength and durability
  • Cut to exact length for same day shipping
  • To order, specify Catalog Number and Overall Length.
    Example: PT14-250-18
  • For a custom length, specify Catalog Number and overall length.
    Example: PT14-250-23.24
  • Custom tube sizes and configurations available here
  • Use as a stand alone component or in Rear-Load Cascades

Catalog
Number		 Pipe
Size
(NPT)
Tube
O.D.
Tube
I.D.		 Hex
Wrench
Size		 Overall Length "L"
12" 18" 24" 36" 48" Lengths
to 5 ft.
PT16-072- 1/16 .072 .060 5/32 ● ● ● ● ● ●
PT16-093- .090 .076 5/32 ● ● ● ● ● ●
PT16-109- .109 .095 5/32 ● ● ● ● ● ●
PT16-125- .125 .109 5/32 ● ● ● ● ● ●
PT16-187- .187 .167 5/32 ● ● ● ● ● ●
PT18-125- 1/8 .125 .109 3/16 ● ● ● ● ● ●
PT18-187- .187 .167 3/16 ● ● ● ● ● ●
PT18-250- .250 .230 1/4 ● ● ● ● ● ●
PT14-187- 1/4 .187 .167 1/4 ● ● ● ● ● ●
PT14-250- .250 .230 1/4 ● ● ● ● ● ●
PT14-312- .312 .288 5/16 ● ● ● ● ● ●
PT38-312- 3/8 .312 .288 5/16 ● ● ● ● ● ●
PT38-375- .365 .340 5/16 ● ● ● ● ● ●
PT38-437- .427 .397 3/8 ● ● ● ● ● ●
PT12-375- 1/2 .365 .340 3/8 ● ● ● ● ● ●
PT12-437- .427 .397 3/8 ● ● ● ● ● ●
PT12-500- .500 .444 1/2 ● ● ● ● ● ●
PT34-437- 3/4 .427 .397 9/16 ● ● ● ● ● ●
PT34-500- .500 .444 9/16 ● ● ● ● ● ●
PT34-625- .625 .569 9/16 ● ● ● ● ● ●

* To order, specify Catalog Number and Overall Length. Example: PT14-250-18

* For a custom length, specify Catalog Number and Overall Length. Example: PT14-250-23.24
