BSPT or NPT IN/OUT
ports available
High-Flow Stainless inner tube for optimum flow rates

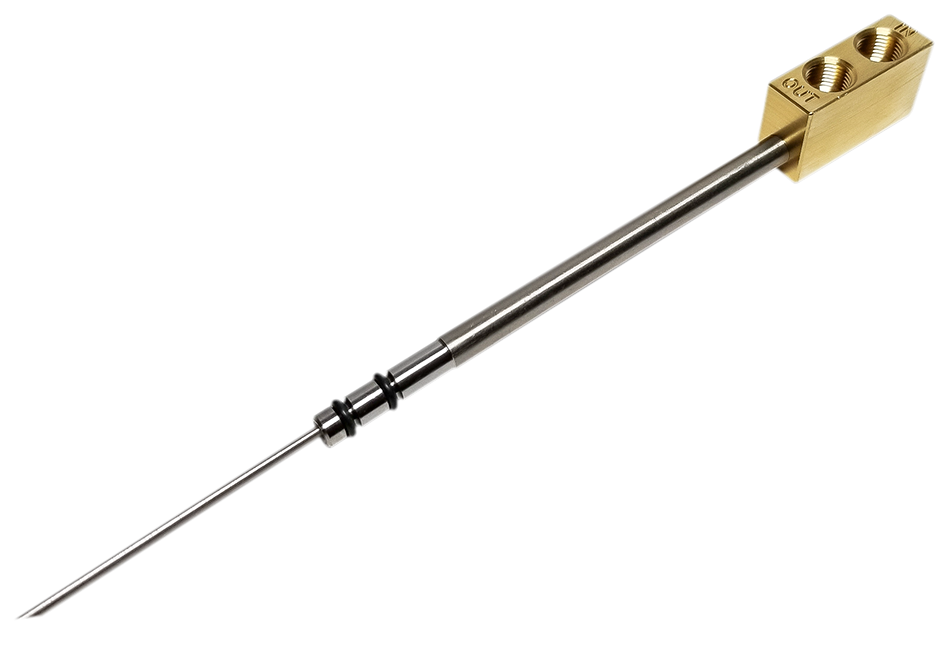

Jet Cool O-Ring Type Assemblies
Receive your assembly ready for installation with a few simple steps
Viton O-Rings
installed standard
(800) 448-2005
- Use this template, or
send us your print - Industry standard compact, push in design
- Easy length control
- Order in any quantity
- NPT IN/OUT ports available
- Specify complete assembly below, or get individual components here
| Model | Type | Nominal | Mold Nipple Thread |
Outer Tube | Inner Tube | |||||
| Head In/Out |
O.D. (mm) |
I.D. (mm) |
O-Ring Used |
O-Ring Diameter | O.D. (mm) |
I.D. (mm) |
||||
| JC | RO (O-Ring) |
06 | M6 x 1 | Rc
1/8 (1/8" BSPT) |
6.0 | 3.0 | S4 | 6.3 | 1.27 | 1.07 |
| 1.83 | 1.52 | |||||||||
| 08 | 1/16" NPT | 8.0 | 4.0 | S6 | 8.2 | 1.83 | 1.52 | |||
| 2.29 | 1.93 | |||||||||
| 10 | 1/8" NPT | 10 | 5.0 | P7 | 10.0 | 1.83 | 1.52 | |||
| 2.29 | 1.93 | |||||||||
| 2.77 | 2.41 | |||||||||
To Specify Assemblies
- To specify a complete assembly, use the instructions below, or this template
- For individual components, please see here
