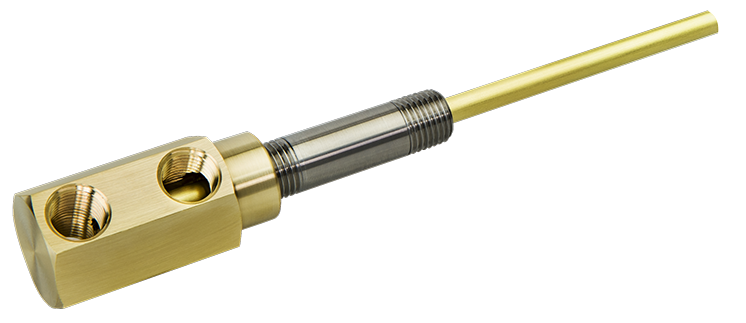

- Assemblies include Brass Head, 12" Brass Tube,
2" long Stainless Pipe Nipple, and Brass Pipe Plug. - Solid Brass Heads are precision machined for accurate assembly.
- Cascade Assemblies are available with custom pipe tap and tube combinations.

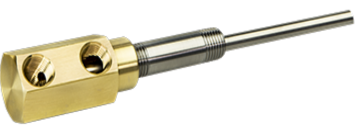

- These assembles are also available with Stainless High Flow Tubes.
Catalog Number |
IN/OUT Pipe Size (NPT) |
Mold Nipple Size (NPT) |
Tube O.D. |
Brass Tube Included (12" OAL) |
Hex Size |
Tube End Ref. |
Stock Item |
||||
| E | C | A | L | X | |||||||
| 16N | 1/16 | 1/8 | 3/16 | 187T-12 | 3/4 | 7/32 | 1/2 | 9/32 | 15/16 | .90 | ● |
| 186N | 1/8 | 7/8 | 21/64 | 11/16 | 9/32 | 1 11/32 | 1.06 | ● | |||
| 181N | 1/8 | 7/8 | 21/64 | 1 | 9/32 | 1 21/32 | 1.18 | ● | |||
| 146N | 1/8 | 1/4 | 1/4 | 250T-12 | 1 | 21/64 | 11/16 | 7/32 | 1 11/32 | 1.05 | ● |
| 146N-4 | 1/4 | 1 | 21/64 | 11/16 | 7/32 | 1 11/32 | 1.08 | ● | |||
| 141N | 1/8 | 1 | 21/64 | 1 | 7/16 | 1 21/32 | 1.44 | ● | |||
| 141N-4 | 1/4 | 1 | 21/64 | 1 | 7/16 | 1 21/32 | 1.44 | ● | |||
| 381N | 1/8 | 3/8 | 5/16 | 312T-12 | 1 | 11/32 | 1 | 13/32 | 1 11/16 | 1.44 | ● |
| 381N-4 | 1/4 | 1 | 11/32 | 1 | 13/32 | 1 11/16 | 1.44 | ● | |||
| 121N-4 | 1/4 | 1/2 | 7/16 | 437T-12 | 1 1/4 | 13/32 | 1 | 9/16 | 1 13/16 | 1.80 | ● |
| 341N-6 | 3/8 | 3/4 | 5/8 | 625T-12 | 1 1/2 | 1/2 | 1 1/4 | 3/4 | 2 1/4 | 2.20 | ● |
* See Brass Tube specifications here.

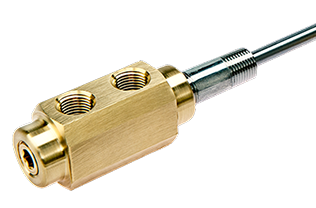

- For use with standard Brass Tubes.
- All dimensions same as above for corresponding catalog number.
- Order Adjustable Brass Nipples, or other pipe nipples here.
- These heads are also available use with High
Stainless Flow Tubes.
Catalog Number |
Tube Thread Size |
Standard Brass Tube |
Alternate High Flow Tube |
Stock Item |
| 16H | 10-32 | 187T- | HF125T- JHF093T- |
● |
| 186H | ● | |||
| 181H | ● | |||
| 146H | 1/4-28 | 250T- | HF187T- JHF125T- |
● |
| 146H-4 | ● | |||
| 141H | ● | |||
| 141H-4 | ● | |||
| 381H | 5/16-24 | 312T- | HF250T- JHF187T- |
● |
| 381H-4 | ● | |||
| 121H-4 | 7/16-20 | 437T- | HF375T- JHF312T- |
● |
| 341H-6 | 5/8-18 | 625T- | JHF500T- | ● |
* See Brass Tube specifications here.
* See High Flow Stainless Tube specifications here.
