| Catalog Number |
Pipe Size |
Pipe Size |
Hex Key Size |
||||||||||
| A | B | W | O.D. | 2 1/2 | 4 | 5 1/2 | 7 | 8 1/2 | 10 | 11 1/2 | 13 | ||
| EP18- | 1/8 | 1/8 | 3/4 | 1/2 | 1/4 | ● | ● | ● | ● | ● | ● | ● | ● |
| EP14- | 1/4 | 1/4 | 1 | 11/16 | 3/8 | ● | ● | ● | ● | ● | ● | ● | ● |
| EP38- | 3/8 | 3/8 | 1 1/4 | 13/16 | 1/2 | ● | ● | ● | ● | ● | ● | ● | ● |
| EP12- | 1/2 | 1/2 | 1 1/2 | 1 | 9/16 | ● | ● | ● | ● | ● | ● | ● | ● |

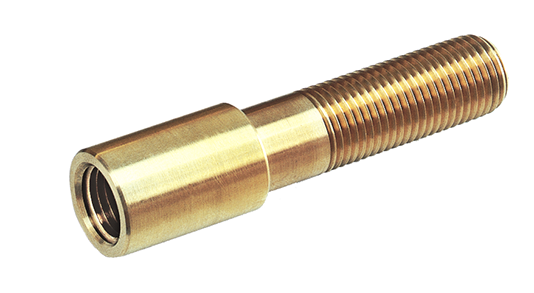

- Hex Key Extension Pipes are available in a wide variety of special lengths and threads
- Longer and exact
lengths available - Also available in
other thread
combinations.
(Including BSPT)
OVERALL LENGTH
* To order, specify Catalog Number and Overall Length. Example: EP14-4
* For a custom length, specify Catalog Number and Overall Length. Example: EP14-7.875
