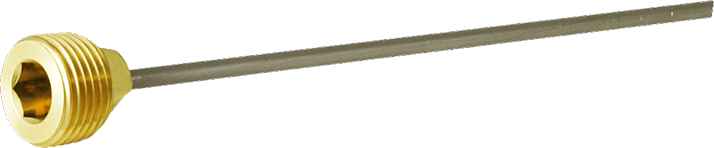

Pipe Plug is assembled to locating rod for positive assembly and removal
Heavy duty hex socket with XT Technology
Stainless Diverter Rod
(Brass Pipe Plug Included)
Brass Diverter
Heavy duty hex socket with XT Technology
Pipe Size
(Flush type brass)
Stainless Rod
- NO SPECIAL TOOLS REQUIRED
- Simply lock diverters in position on the stainless rod and install into the cooling channel
- Rod stays in the center of the cooling channel, allowing maximum heat transfer to coolant
- Choose pipe size and length from the chart. Then choose diverters below. Longer length diverter rods in stock
| Catalog Number |
Pipe
Size (NPT) |
Overall Length L (in) |
Rod Diameter |
Use
Diverter Number |
Stock Item |
| DR-125 | 1/8 | 12 | 3/32 | D-125 | • |
| DR-250 | 1/4 | 18 | 1/8 | D-250 | • |
| DR-375 | 3/8 | 18 | 1/8 | D-375 | • |
| DR-500 | 1/2 | 24 | 3/16 | D-500 | • |
| DR-750 | 3/4 | 24 | 3/16 | D-750 | • |
| DR-1000 | 1 | 36 | 3/16 | D-1000 | • |
| DR-1250 | 1 1/4 | 36 | 1/4 | D-1250 | • |
- Order in any quantity
- Locking screw included
- Special and metric sizes available
Brass Diverter
Locking
Screw
B
Catalog Number |
Pipe Size (NPT) |
Diverter O.D. (-.005) |
Diverter Length |
Fits Rod Dia. |
Stock Item |
| B | |||||
| D-125 | 1/8 | .340 | 3/8 | 3/32 | • |
| D-250 | 1/4 | .432 | 7/16 | 1/8 | • |
| D-375 | 3/8 | .557 | 1/2 | 1/8 | • |
| D-500 | 1/2 | .682 | 3/4 | 3/16 | • |
| D-750 | 3/4 | .932 | 3/4 | 3/16 | • |
| D-1000 | 1 | 1.115 | 3/4 | 3/16 | • |
| D-1250 | 1 1/4 | 1.458 | 3/4 | 1/4 | • |
