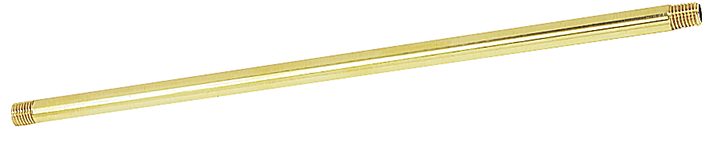

Brass Tubes

PDF

CAD

  • Half hard temper for reliable performance
  • Also available in stainless steel
  • To order, specify Catalog Number and Overall Length. Example: 250T-18
  • For a custom length, specify Catalog Number and Overall Length. Example: 250T-23.24
  • For stainless steel, add '-SS' to catalog number

Catalog
Number

Thread
Size
Thread
Length

Tube
O.D.

Tube
I.D.

12" 18" 24" 36" Lengths
to 10 ft.
125T- 5-44 3/16 .125 .069
187T- 10-32 3/16 .187 .123
250T- 1/4-28 1/4 .250 .170
312T- 5/16-24 5/16 .312 .210
375T- 3/8-24 3/8 .375 .273
437T- 7/16-20 7/16 .437 .307
625T- 5/8-18 5/8 .625 .495

OVERALL LENGTH

* To order, specify Catalog Number and Overall Length. Example: 250T-18

* For a custom length, specify Catalog Number and Overall Length. Example: 250T-23.24
